The Multi-Fit Bed can be fitted
to patient’s size and condition.

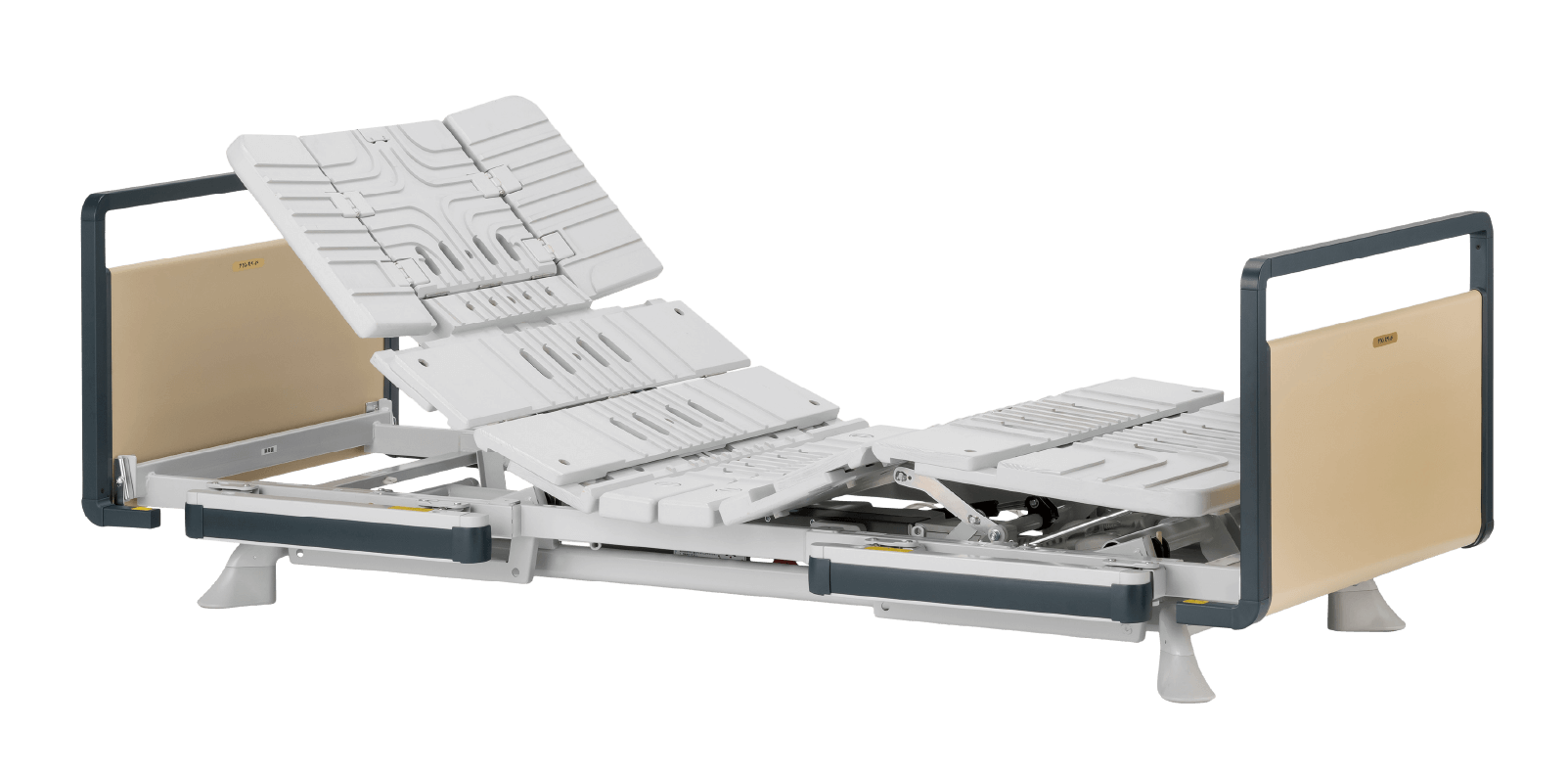

“Multi-Fit Bed”

By adding various functions, the bed can meet a wide range of needs by fitting it to the user's
“figure”, “condition”, “posture”, and “space” to be used.

  • Head up function
  • Side-up function
  • Gatch function interlocking
    with the back legs, internal
    angle retention
  • Multi-Fit bottom
  • Knee position fit
  • Vertical lifting

KEY POINTS of the
“Multi-Fit Bed”

  1. POINT 1 Fits your body

    By adjusting the bottom of the bed, you can fit the bed to your body shape.

    Multi-Fit bottom

    Multi-Fit platform can be adjusted to 3 types of length.

    Bottom applicable height mattress size
    Short 181cm (Recommended for women and short people) ~ 160cm 91 × 181cm
    Regular 195cm 160 ~ 180cm 91 × 195cm
    Long 209cm (Recommended for tall people) 180 ~ 195cm 91 × 209cm

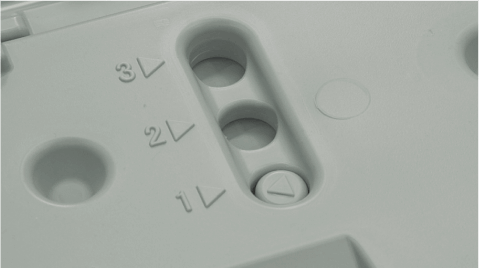

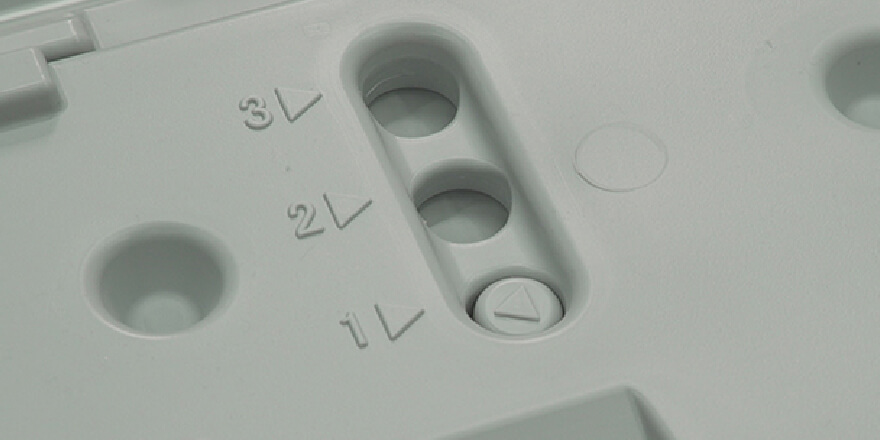

    Knee position fitting function

    A function to adjust the knee position of the bottom according to the thigh length.
    By adjusting your knee position, you can raise your back more comfortably and less likely to move forward. For the caregiver, the effort to lift the body of the user who has moved forward can be reduced.

    • When the setting of the
      Multi-Fit bottom is Short
    • When the setting of the
      Multi-Fit bottom is Regular
    • When the setting of the
      Multi-Fit bottom is Long

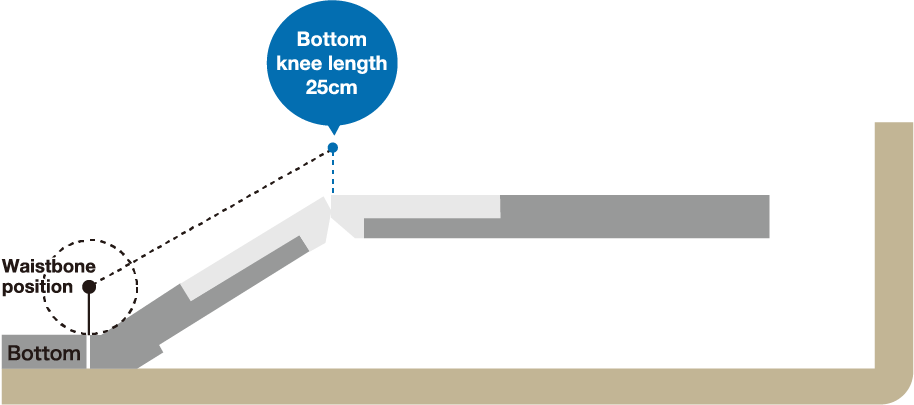

    • If the Multi-Fit bottom is set to short, the leg is set to short.

      Leg settings Bottom knee length
      Leg short 25cm
      Bottom knee length
      25cm

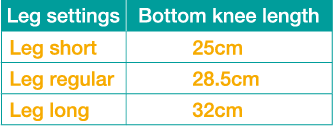

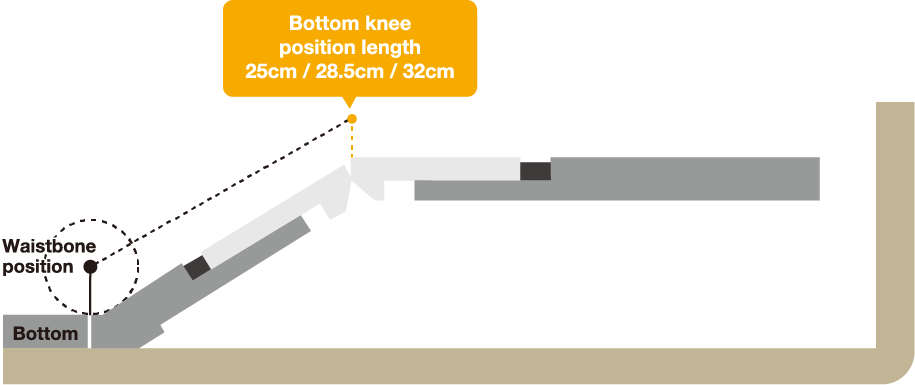

    • When the setting of the Multi-Fit bottom is regular, you can choose from three leg settings: short leg, regular leg and long leg.

      Leg settings Bottom knee length
      Leg short 25cm
      Leg regular 28.5cm
      Leg long 32cm
      Bottom knee position length
      25cm / 28.5cm / 32cm

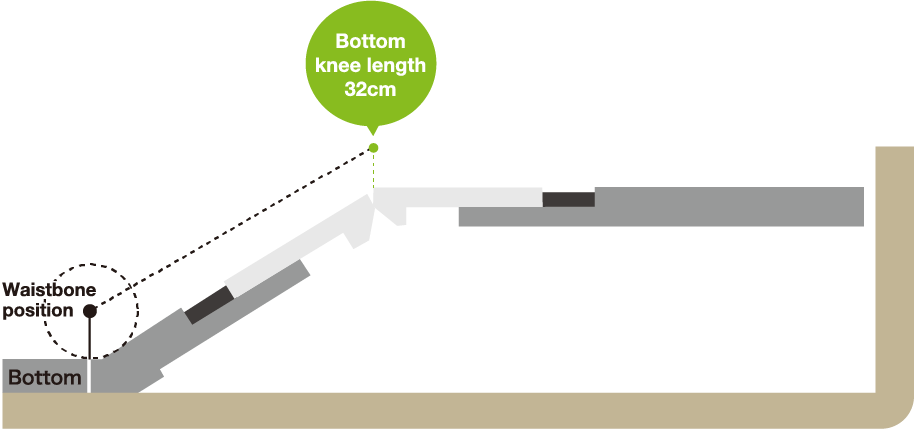

    • When the Multi-Fit bottom is set to long, the leg is set to long.

      Leg settings Bottom knee length
      Leg long 32cm
      Bottom knee length
      32cm
  2. POINT 2 Fits the body condition

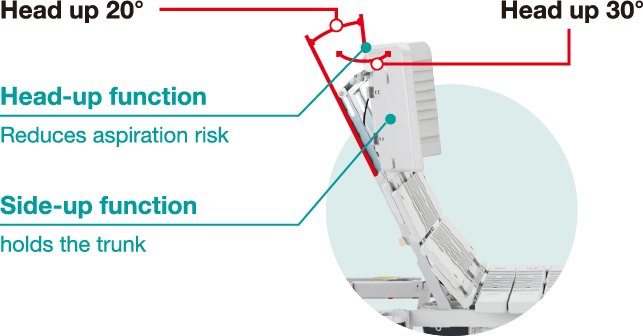

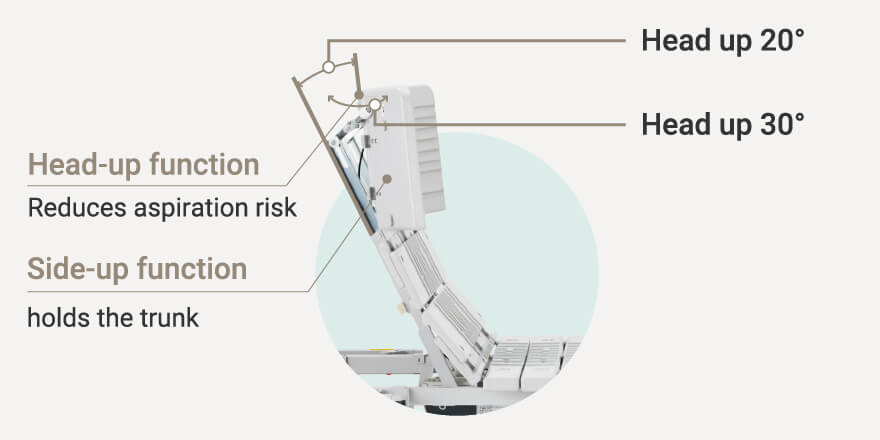

    Head-up function & side-up function

    The head-up mechanism has the effect of expanding the field of view by looking in front and reducing the risk of aspiration. The side-up function holds the trunk.

  3. POINT 2 Fits posture

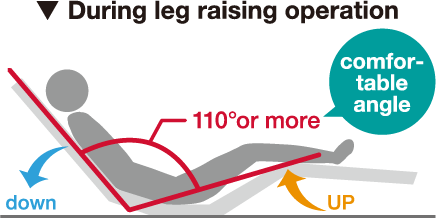

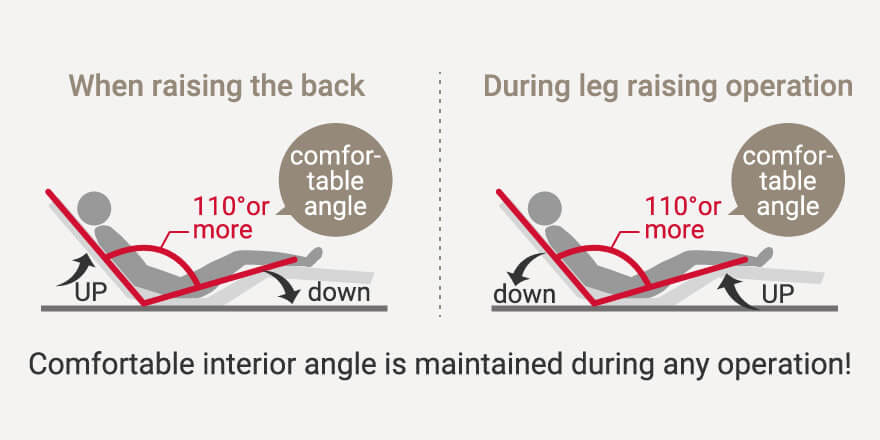

    The back-leg interlocking gatch function with internal angle retention function reduces the risk of abdominal pressure.

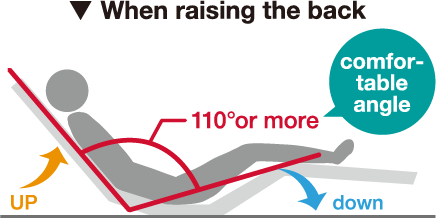

    Inner corner retention function

    A function that automatically keeps the angle of the back bottom and leg bottom above a certain angle.

  4. POINT 2 Fits the environment

    Normal care beds move up and down in an arc rather than up and down, but Multi-Fit Bed moves up and down vertically, which saves space.

    Normal nursing bed

    Draw an arc when going up and down

    Multi-Fit Bed

    Vertical lifting saves space compared
    to normal nursing beds.
    (*Comparison with our products.)

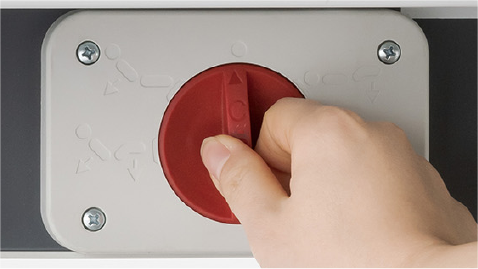

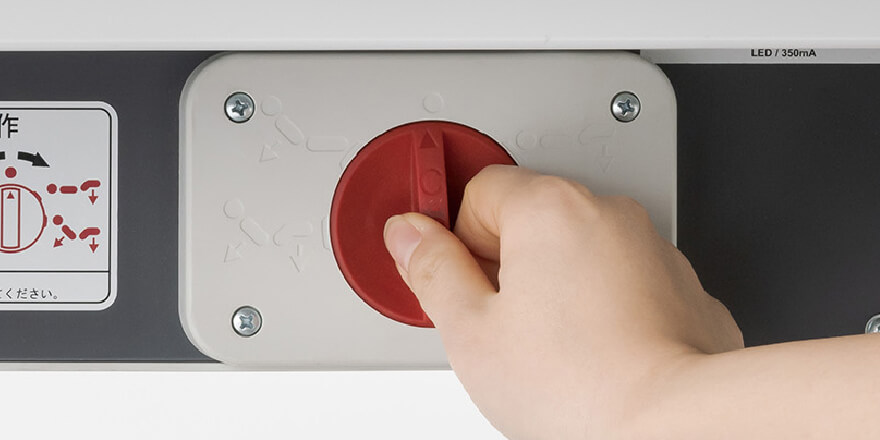

  5. POINT 2 Equipped with an emergency response switch, even in the event of a sudden power failure, it is possible to return the platform to a flat state

    It is safe because you can return the reclining state to a flat state even in the event of a sudden power failure.

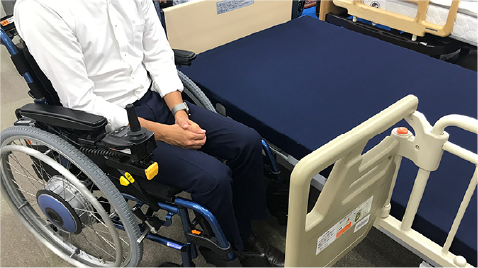

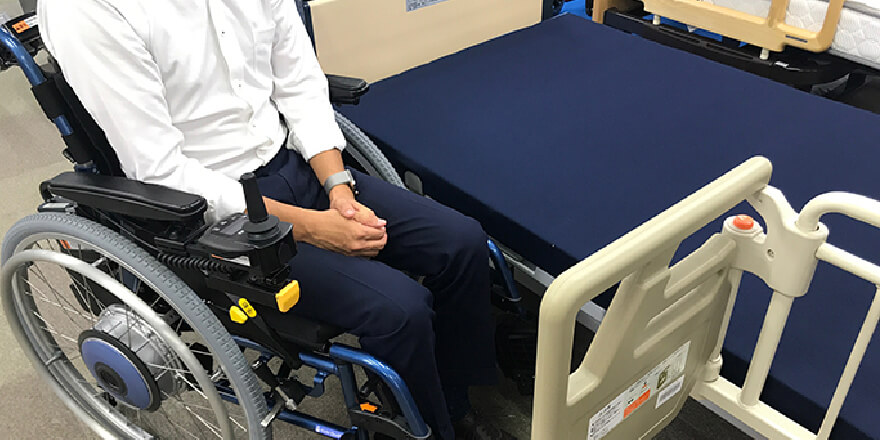

  6. POINT 2 Bracket storage type non-side frame keeps your feet clear

    The side frame has been eliminated, which can be an obstacle when standing up or transferring to a wheelchair.

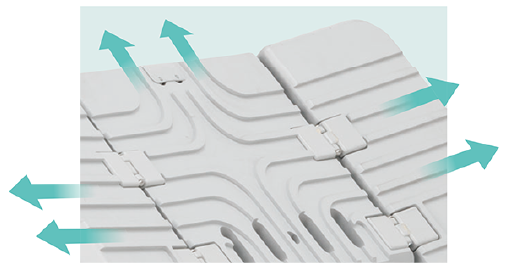

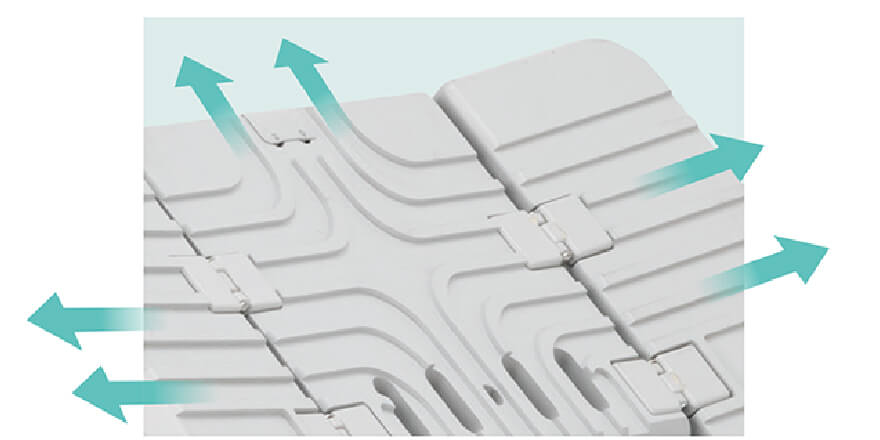

  7. POINT 2 The bottom is a highly breathable air breeze specification that eliminates stuffiness

    High ventilation eliminates stuffiness.

  8. POINT 2 Other enhanced functions

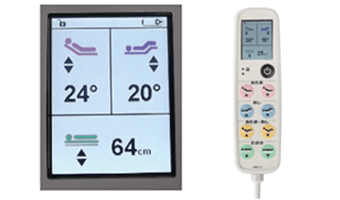

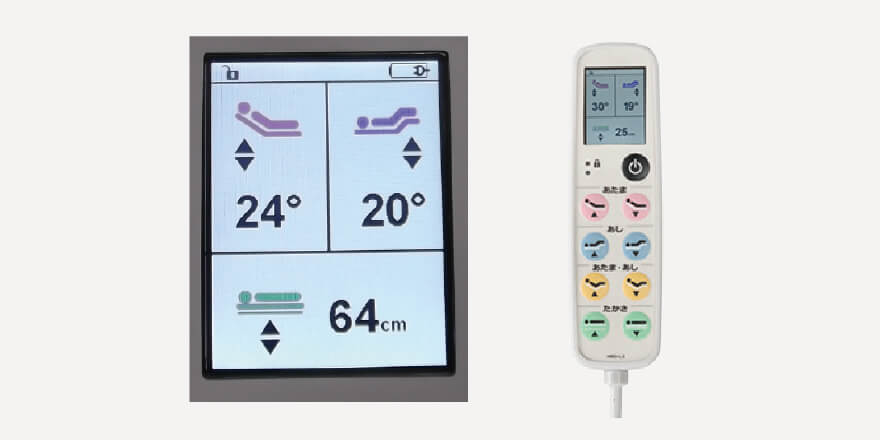

    LCD screen equipped hand switch

    Equipped with a monitoring function* in addition to the display which shows the angle and the height.
    *Usage status of back-raising, leg-raising, and up/down times.

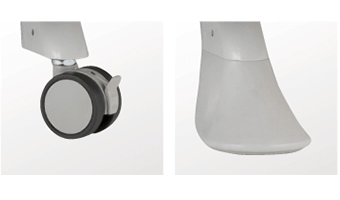

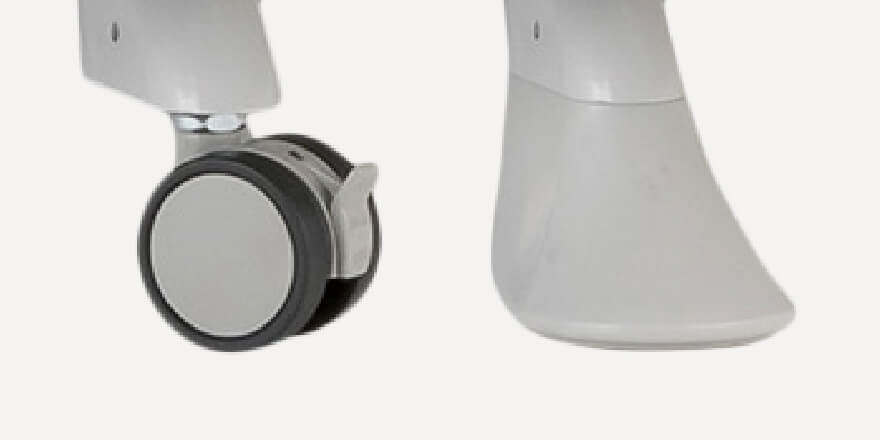

    You can choose your legs

    You can choose from two types of legs: casters and fixed legs.

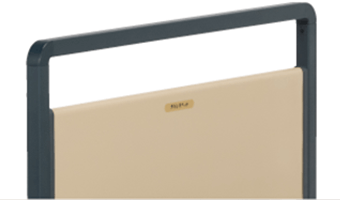

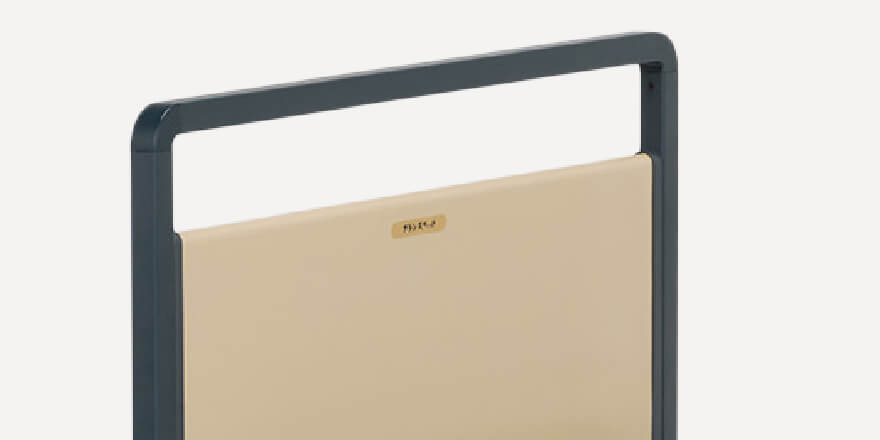

    Functional frame design

    Headboard and footboard with a design that is easy to walk along.

    You can choose from all side rails made in FRANCE BED

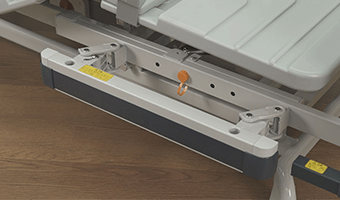

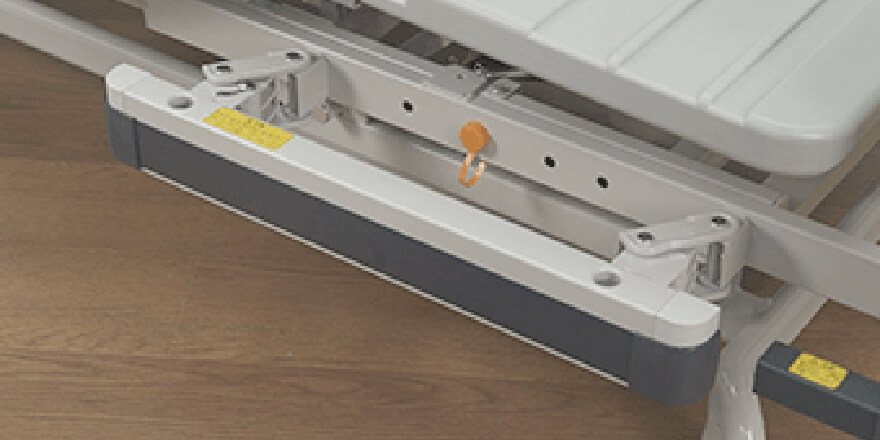

    When using the side rails, pull out the retractable bracket before using.

Product explanation video

Product specifications

DIMENSIONS L195.5 / 209.5 / 223.5 × W100 × H66.5 ~ 105.5cm
BED SECTION HEIGHT ADJUSTMENT 25 ~ 64cm
BACK SECTION RANGE OF ADJUSTMENT 0° ~ 72°
LEG SECTION RANGE OF ADJUSTMENT 0° ~ 40°
SIDE-UP ANGLE 0° ~ 30°
HEAD-UP ANGLE 0° ~ 20°
WEIGHT 91kg
MAX USER WEIGHT 135kg
OPERATION TIME Continuously 2mins
